4.10.3.2 Protocol Stacks for NG Control Plane

Taught in 4. What NR actually is, in the shape its own document gives it (TSG RAN — the group that specifies the radio, overview).

The figure below shows the NG-C protocol stack with the NR Femto GW.

When the NR Femto GW is not present, NG-C is defined as specified in clause 4.3.1.2, and all the NGAP procedures are terminated at the NR Femto node and the AMF.

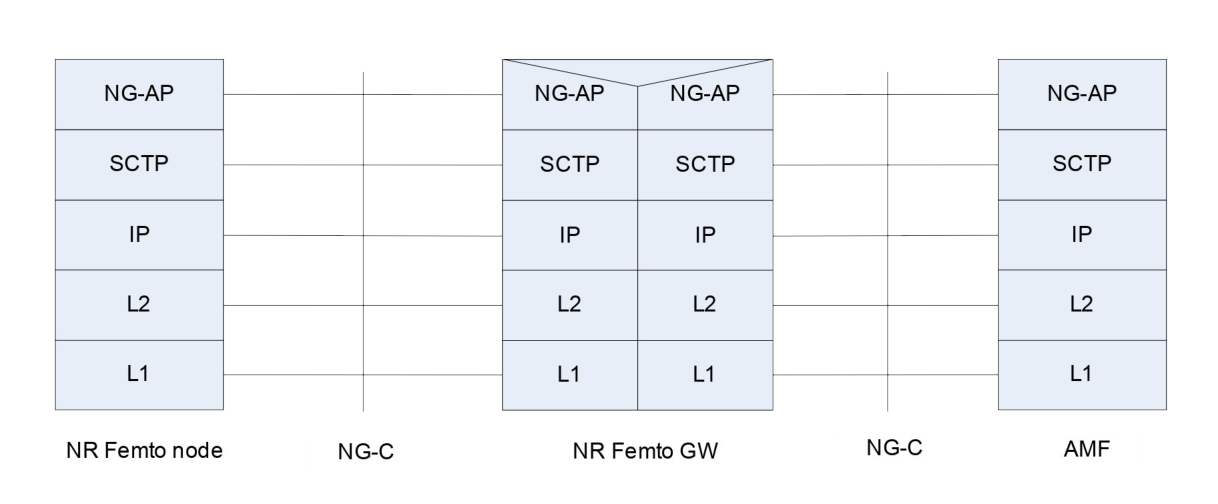

Figure 4.10.3.2-1: Control plane for NG Interface between NR Femto node and AMF with the NR Femto GW
Figure 4.10.3.2-1: Control plane for NG Interface between NR Femto node and AMF with the NR Femto GW
