S.4.2 User Plane Protocol Stacks to support N3 interface for MWAB node

Taught in 26. Relays, satellites, femtos and shared networks (The 5G system architecture, in depth).

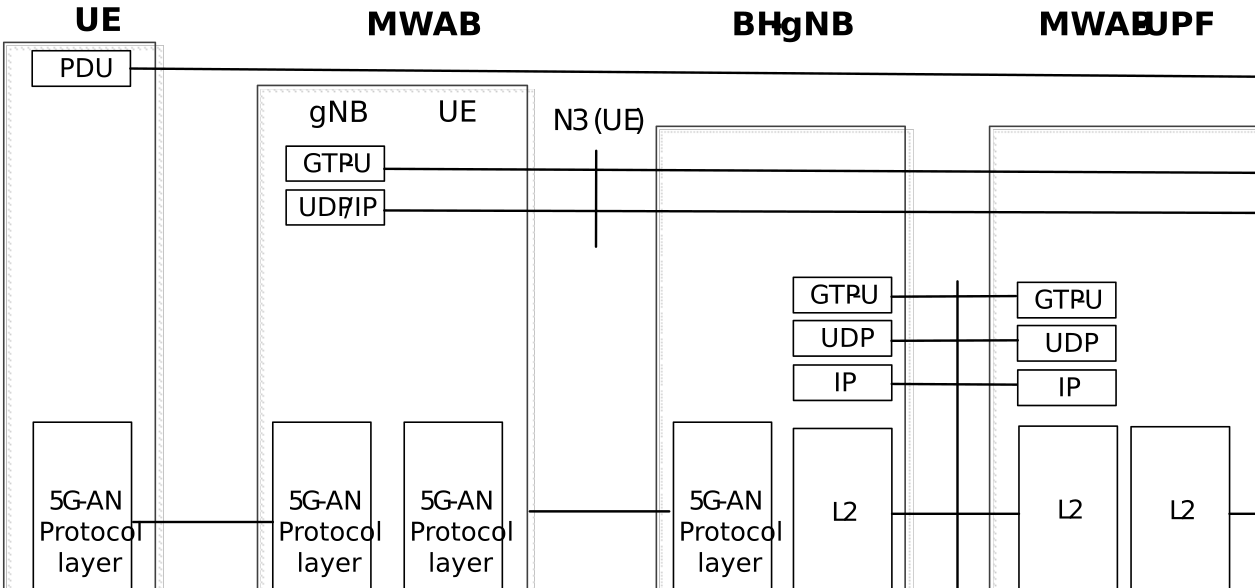

Figure S.4.2-1: User Plane Protocol Stacks to support the N3 interface
Figure S.4.2-1: User Plane Protocol Stacks to support the N3 interface

Figure S.4.2-1 illustrates the User Plane Protocol Stacks to support the N3 interface. A PDU session between MWAB-UE and MWAB-UPF is established as a backhaul link to support the overlayed N3 interface. The N3 interface terminates at MWAB-gNB and UE-UPF, which includes GTP-U and UDP/IP layer protocols between them. A PDU session between UE and UE-UPF is realized by:

  • the Uu between UE and MWAB-gNB; and
  • the N3 between MWAB-gNB and UE-UPF on top of the backhauling PDU session between MWAB-UE and MWAB-UPF.
