S.4.1 Control Plane Protocol Stacks to support N2 interface for MWAB node

Taught in 26. Relays, satellites, femtos and shared networks (The 5G system architecture, in depth).

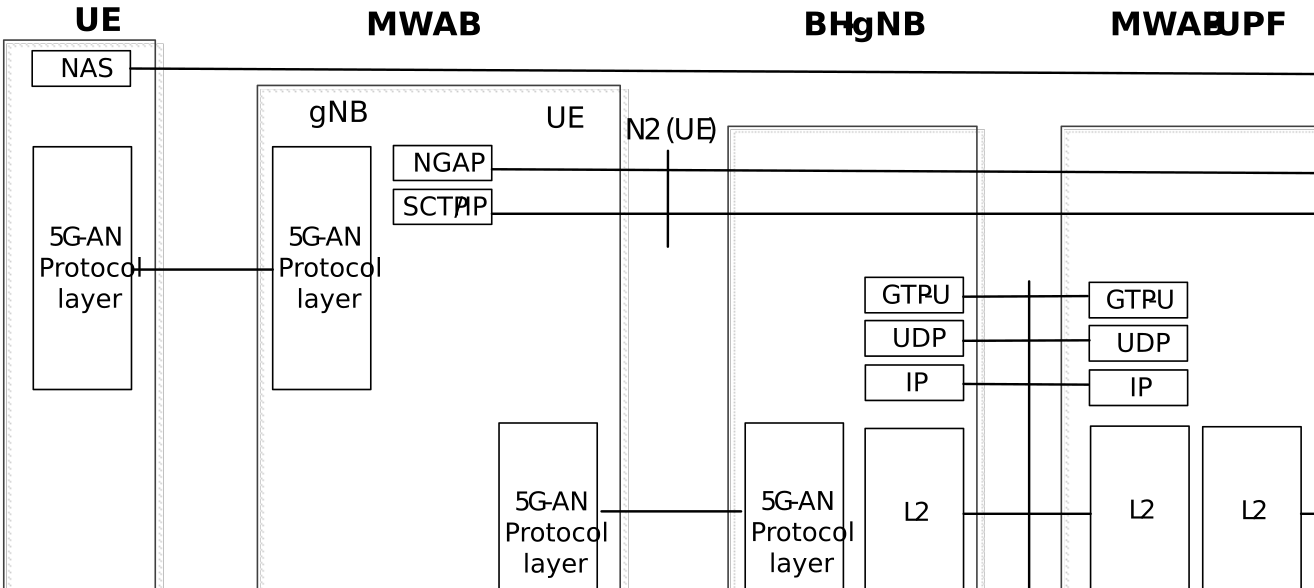

Figure S.4.1-1: Control Plane Protocol Stacks to support the N2 interface
Figure S.4.1-1: Control Plane Protocol Stacks to support the N2 interface

Figure S.4.1-1 illustrates the Control Plane Protocol Stacks to support the N2 interface. A PDU session between MWAB-UE and MWAB-UPF is established as a backhaul link to support the overlayed N2 interface. The N2 interface terminates at MWAB-gNB and UE-AMF respectively, which includes NGAP and SCTP/IP layer protocols between them.
