8.3.6 User Plane for Trusted WLAN Access for N5CW Device

Taught in 8. What actually travels on the wire (The 5G system architecture, in depth).

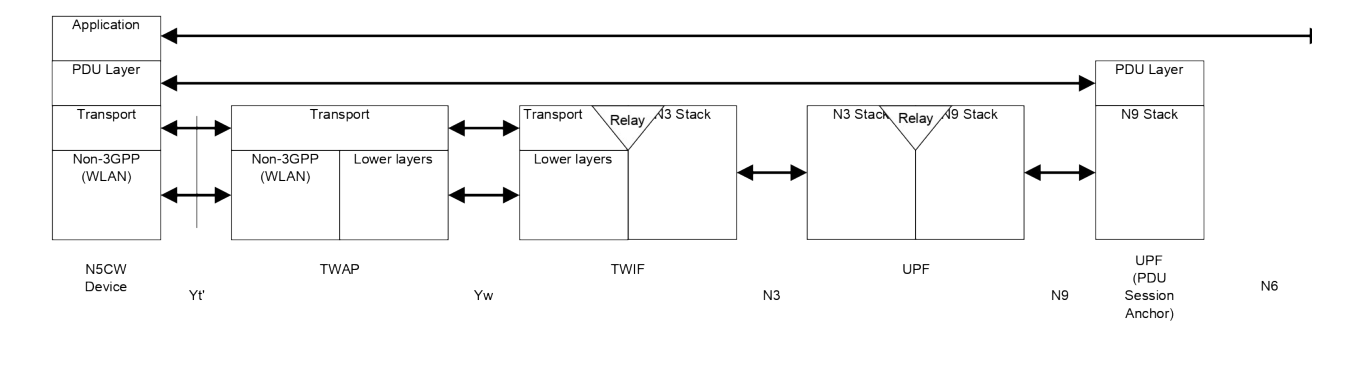

Figure 8.2.8-1: User Plane for trusted WLAN access for N5CW device
Figure 8.2.8-1: User Plane for trusted WLAN access for N5CW device

Legend:

  • Transport: this layer refers to the transport of PDUs between the N5CW device and TWIF (see clause 4.2.8.5.4).

In this Release of the specification, Trusted WLAN Access for N5CW Device only supports IP PDU Session type.
