8.3.3 User Plane for trusted non-3GPP Access

Taught in 8. What actually travels on the wire (The 5G system architecture, in depth).

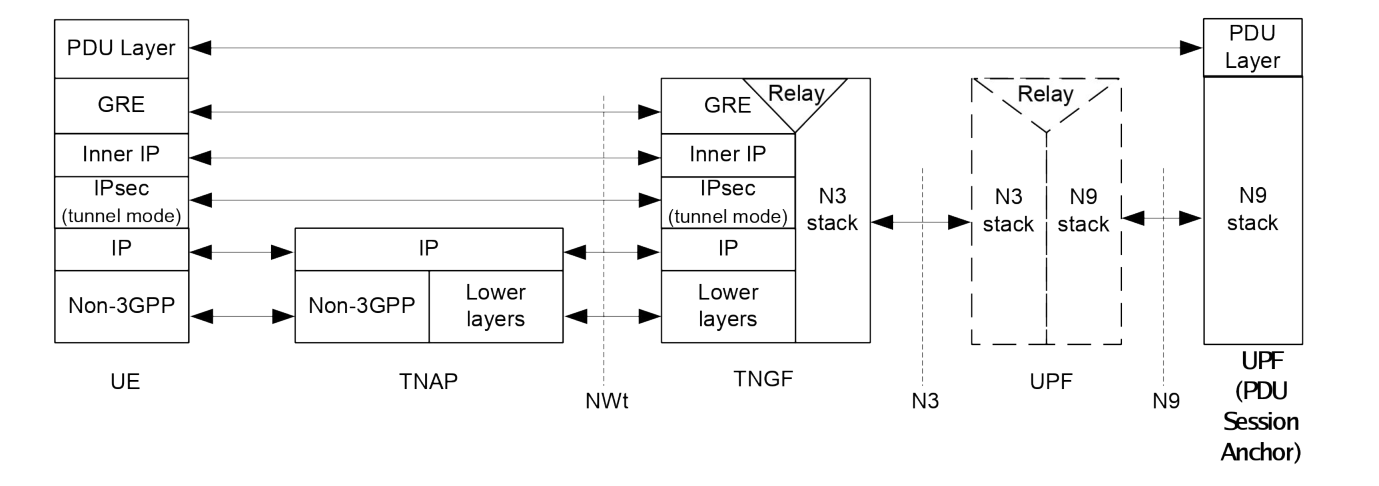

Figure 8.3.3-1: User Plane via TNGF
Figure 8.3.3-1: User Plane via TNGF

Large GRE packets may be fragmented by the "inner IP" layer.

Details about the PDU Layer, the N3 stack and the N9 stack are included in clause 8.3.1. The UDP protocol may be used below the IPsec layer to enable NAT traversal.
