6.1.3.2.1 Overview

Taught in 4. Inside TS 24.501, the document at the centre (CT1 — the group that writes what your phone says, overview).

In the following clauses, the possible 5GSM sublayer states of the UE are described and shown in figure 6.1.3.2.1.1.

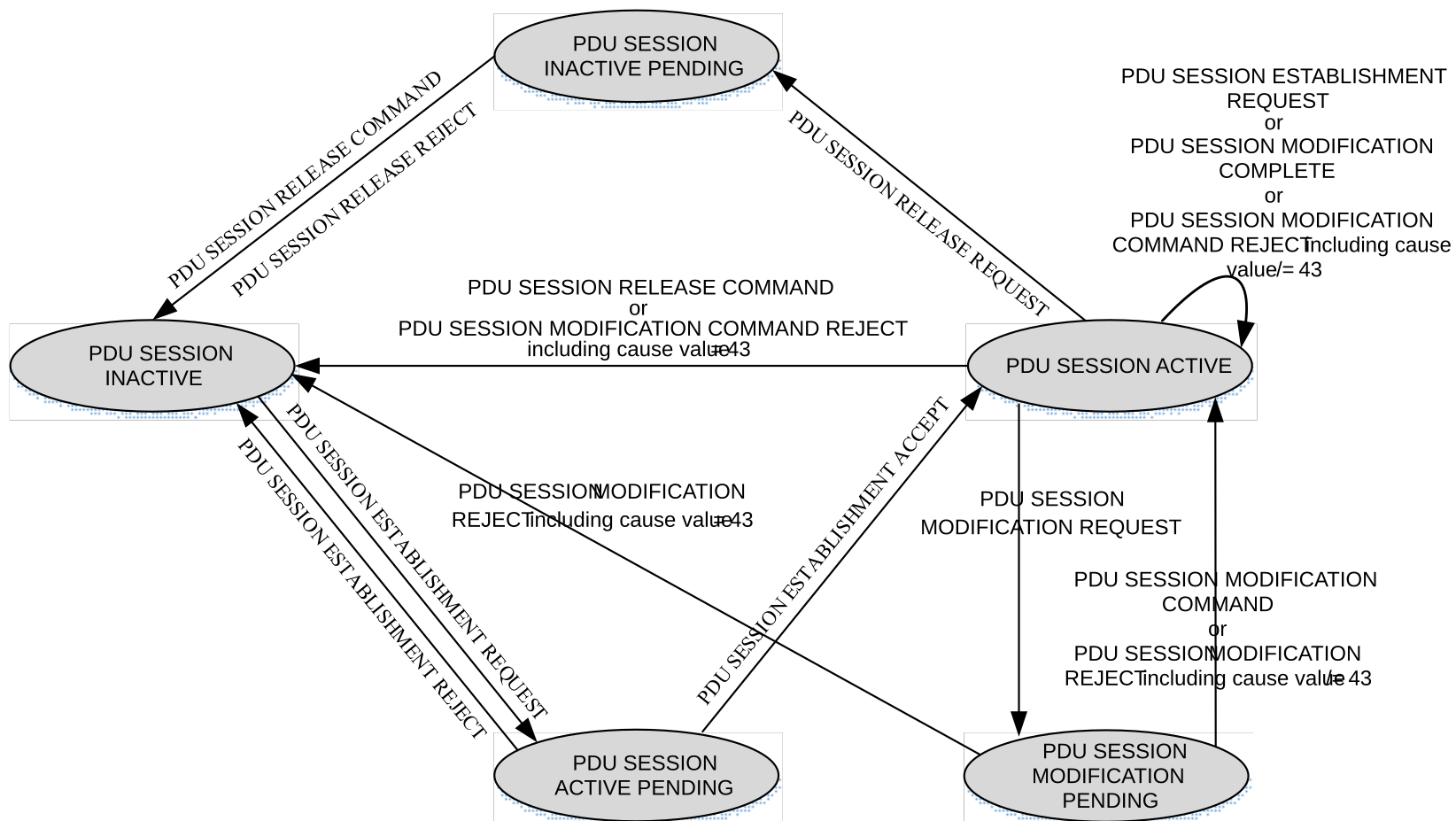

Figure 6.1.3.2.1.1: The 5GSM sublayer states for PDU session handling in the UE (overview)
Figure 6.1.3.2.1.1: The 5GSM sublayer states for PDU session handling in the UE (overview)

NOTE 1: Not all possible transitions are shown in this figure.

NOTE 2: Some transitions shown in this figure are not applicable to the MA PDU session.
