3GPP 23.369 v20.0.0 — the document's own text
4.2.3 Architecture for UE Reader
Taught in 2. What an Ambient IoT system is made of (Ambient IoT — a tag with no battery, quick start).
In the UE Reader architecture, the AIoT Device communicates with a UE acting as an AIoT Reader (UE Reader). The UE Reader connects to the NG-RAN, and the messages between the UE Reader and the AIOTF are delivered using RRC between the UE and NG-RAN, NGAP between the NG-RAN and AMF, and using an SBI interface between the AMF and AIOTF.

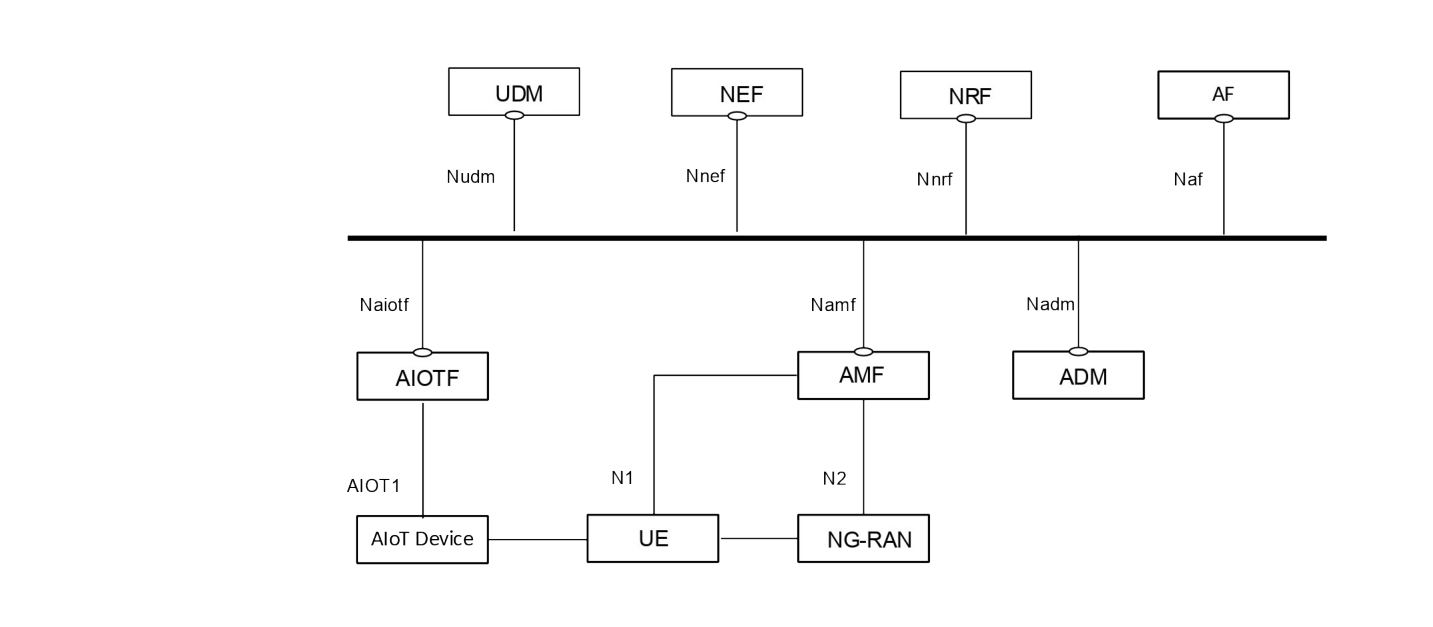

Figure 4.2.3-1 depicts the AIoT System Architecture for UE Reader.

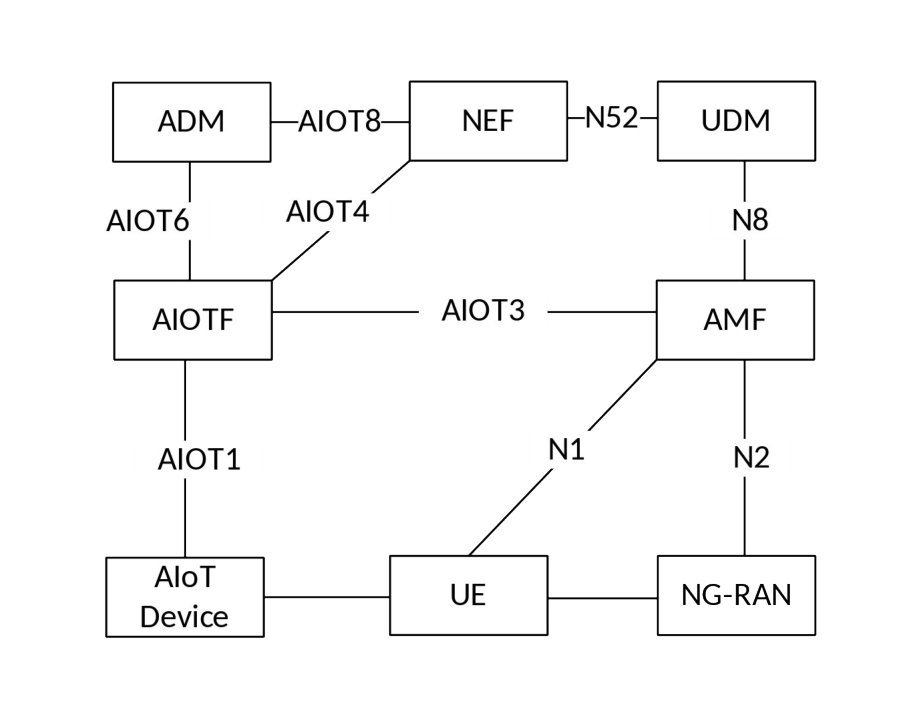

Figure 4.2.3-2 depicts the AIoT system architecture, using the reference point representation.
